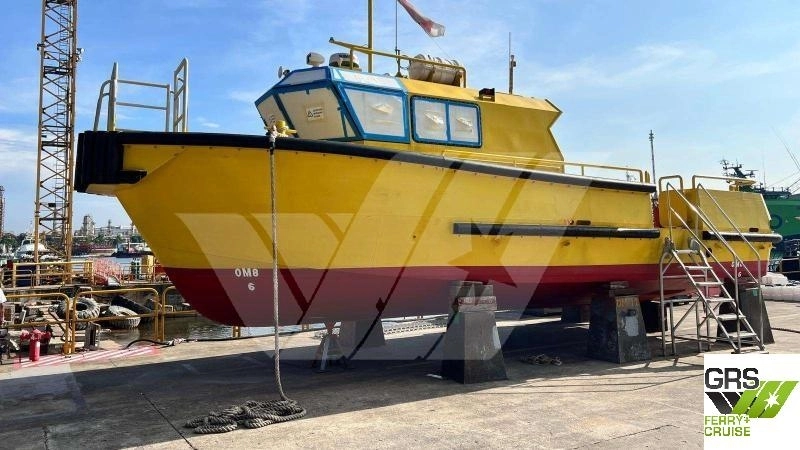

FRC SPEC Length overall 12.2 metres Length hull 12.2 metres Beam (Moulded) 4.5 metres Draft loaded 0.7 meters Lightship displacement Approximately 12 tons Tank Capacities Fuel Oil 1,800 litres Crew 1 Passenger 10 Machinery Main Propulsion Engines 2 x Cummins QSB-6.7 312kW (419bhp ) @ 3000rpm or equal Propulsion 2 x NAMJET TJ431HH Water Jets Performance The vessel shall be capable of achieving the following performance in calm water (up to sea state 2): Speed 22 knots @ 100% MCR - based on 2.5 Dead Weight Tonnes (DWT) Bollard Pull 3.5 tons DESIGN OPERATING CONDITIONS Engineering systems shall be designed to operate under the following environmental conditions: External air 0oC to + 40oC (80% relative humidity) Machinery space Max 45oC Sea water 0oC to 32oC CLASSIFICATION & SURVEY The vessel is constructed in accordance with the Bureau Veritas Classification Society Rules and Regulations of Fast Utility Vessel. Plan approval and survey will be completed by Bureau Veritas to the following notation: I X HULL l MACH Lightship - Fast Utility Vessel Sea Area 2 DAVIT SPEC Davit Model PLD-15000 Electric data requirements onboard: Power supply 415V , 50 Hz , 3 phase from Ship Power estimate, kW: 142kW Starter cabinet placement and material: Inside, Powder coated steel HPU placement and material: Inside (spray coated steel) HPU type: Power Supply 144kW 415V , 50 Hz Oil flow 239 I/min @390 bar Max Working pressure pm: 319 bar IP54 Davit operational speed, approx.: 30 Starter type: Included Soft starter panel (indoor) Dimension 800 X 1200X 400mm IP66 Davit emergency lowering speed, approx.: Not included Safe working load (S.W.L) of davit: 15000 kg Starboard or Port side mounting: Port side Mounting Material on pipe set on davit Stainless Steel Material on fittings Chrome Material on fitting on hoses Chrome Paint/coating spec.: Vest davit: VD-CS-92105 Davit Paint colour: RAL 9010 Paint colour of Hydraulic Power Unit (HPU): RAL 9010 Paint colour of Starter: RAL 7035 Hydraulic connection points to be delivered ISO Metric LOA 12.2 m Beam 4.5 m Draft .7 m Class : Bureau Veritas Total passenger capacity 10
