AUCTION SALE 17-09-2025 - Contact GRS / 123m / Cu

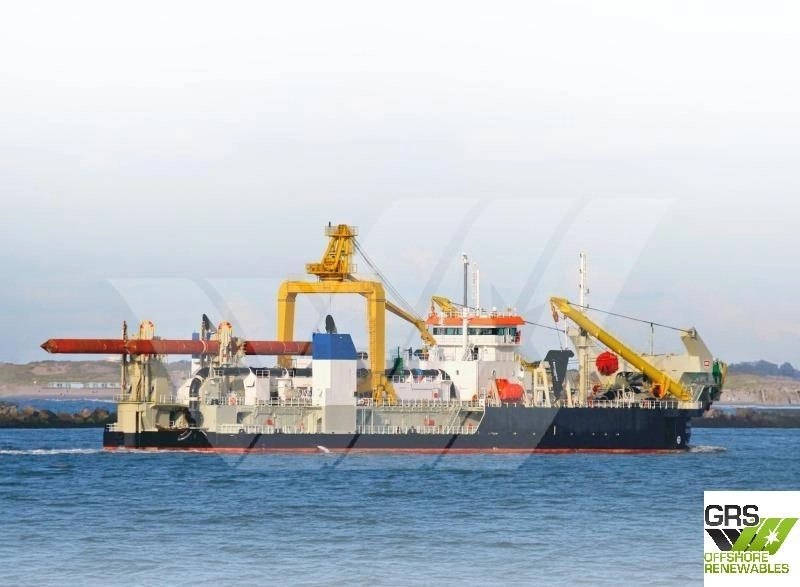

AUCTION SALE 17-09-2025 - Contact GRS / 123m / Cutter Suction Dredger for Sale / #1080942 heavy-duty, self-propelled Cutter Suction Dredger (CSD) designed for coastal and port operations up to 28 meters deep. Built in 2014 by the renowned IHC shipyard, the vessel offers exceptional power (over 23,500 kW) and advanced dredging systems. Designed for coastal and sheltered water operations up to 15 meters.



Gross Tonnage (GT): 5,670 tons

Net Tonnage (NT): 1,701 tons

Maximum Speed: 9 knots

Total Power: 23,545 kW

Cutter Power: 3,500 kW

Maximum Dredging Depth: 28 meters

Total Installed Power: Approx. 23,545 kW

4 × Main Generator Sets

(~5,288 kVA - 4,230 kW each)

1 × Emergency Generator Set

(850 kVA / 680 kW)

1 × Auxiliary Unit (1,500 kVA / 1,200 kW)

Main Engines:

2 × MAN B&W 48/60CR, 9-cylinder,

each ~3,180 kW @ 500 rpm

Propulsion Motors:

2 × Electric Motors, 1,590 kW @ 1,000 rpm

Driving ZF AT-7000 Azimuth Thrusters

(2.2 m diameter, 255 rpm)

Fuel Capacity: Approx. 1,134 m



Dredging Gear

Suction & Discharge Pipeline Diameter: 900 mm

Spud System: 2 × Spud Poles for positioning and anchoring

Deck Crane: 1 × Travelling Gantry Crane - SHF Crane Model 311

Lifting Capacity: 30 tons at 21-meter outreach

LOA 122,5 m

Beam 21,7 m

Draft 5 m



Built in year 2014

Class : Registro Italiano Navale

Flag : Saudi Arabia

Gross Tonnage of 5.670 and Nett Tonnage of 1.701



Deadweight : 1.756 metric tonnes



Speed : 9 knots

Engines : 2 x MAN / MAN Nutzfahrzeuge Nuernbe 9L48/60, 14.710 kw, 500 rpm, Propellers 1 Azimuth Elec. Dr. (Port Side) + 1 Azimuth Elec. Dr. (Starboard)

Auxiliaries Engines : Bowthruster + No Sternthruster (1 Bow Tunnel thruster)



1 Deck
