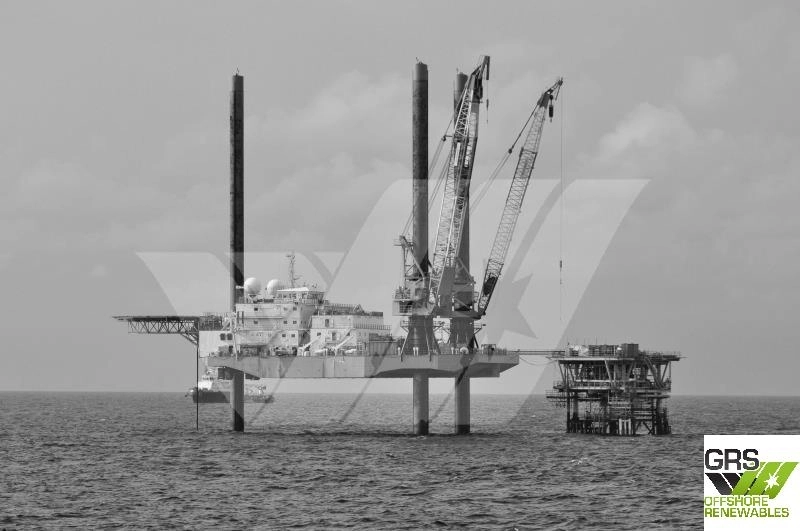

83m / DP 1 / 150 pax / 295ts Crane Jack Up for Sale / #1075909 This Jack Up is a specially adapted jack-up accommodation and crane barge. As a self-propelled, self-elevating vessel provides versatility and operational flexibility. Fitted with two cranes, it has the impressive ability to use them both in tandem.

Located on the main deck is a quarters/pilothouse, three jacking towers with a ringer crane a top each of the forward towers. The engine room and tanks for ballast, preload, fresh water, fuel oil, slop oil and oily water are located below the main deck. The quarters arrangement accommodates 150 including the crew. Each leg can operate independently by means of a hydraulically controlled rack and pinion jacking system. As the hull is elevated out of the water, the three legs transfer the hull olad to the pads resting on the sea bottom.

LOA 83,36 m

Beam 39,32 m

Draft 3,26 m



Built in year 2012

Class : Bureau Veritas

Flag : [Unknown]

Gross Tonnage of 3.783 and Nett Tonnage of 1.134



3 legs of 98m length

Dynamic Positioning of class : DP 1

1 Crane / Gear installed with a max lifting capacity of 295 tons

1 Crane / Gear installed with a max lifting capacity of 295 tons

Deadweight : 1.104 metric tonnes

Heli Deck installed



Total passenger capacity 150 with 150 berths

50 cabins with 2 berths

12 cabins with 4 berths

2 cabins with 1 berth



Speed : 7 knots

Engines : Unknown Builder 3512 DITA, 6.800 kw

Auxiliaries Engines : 1 x 250 kw, Bowthruster (1 Bow 1.150hp)
