$ 3,000,000
Título
EX Yard 88% completed / DP1 / Upgrade to DP2 poss
Condição
Usado
Modelo
Custom
Tamanho
59.0 m
Ano de Fabricação
2025
País
Germany
Cidade
Hamburg
Boca (Largura)
15.0 m
Calado (Profundidade)
5 m
Velocidade de Cruzeiro (Nós)
125
Cama para Convidados
28
Descrição Principal

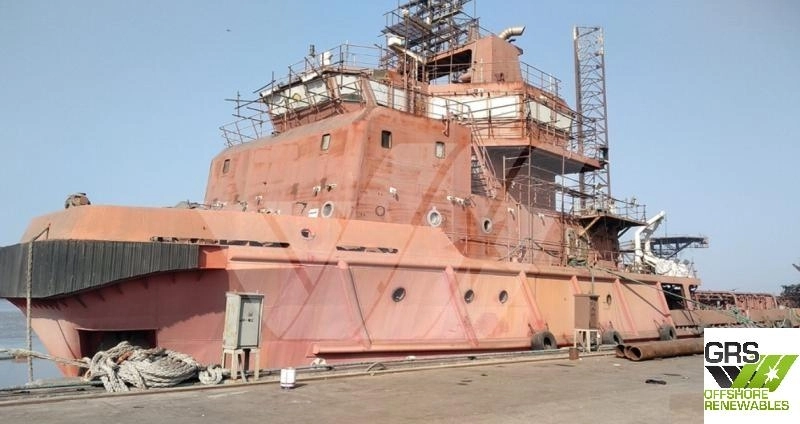

EX Yard 88% completed / DP1 / Upgrade to DP2 possible / 4 Sisters available / 59m Platform Supply Vessel for Sale / #1074102 Construction stages of the OSV at the shipyard: 88% (sea trial completed)
Capacities
Deck Cargo: 500 MT
Cement: 100.00 m³
Fuel Oil: 573.30 m³
Lubrication Oil: 8.00 m³
Fresh Water: 673.50 m³
Ballast Water / Drill Water: 479.90 m³
Open Deck Area: 330 m²
Main Engine
·Type: YANMAR 6EY26
·MCR (Maximum Continuous Rating): 1,920 kW x 750.0 RPM
·NCR (Normal Continuous Rating): 1,632 kW x 710.5 RPM
Service Speed
·Speed: 12.5 knots
Bulk Handling System
·Air Compressor: 6 m³/h
·Cement Tanks: 4 x 25 m³
Water Ballast / Drill Water System
·System: Two (2) Main Lines
·Pump: 2 Sets x 200 m³/h
Power Supply
·Main Diesel Generators: 2 Sets x 280 kW
·Emergency Generator: 1 Set x 90 kW
Propulsion & Steering
·Propulsion System: Berg CPP System
·Steering: 2 x Timon Flap Rudder with Electro Hydraulic Rotary Vane Steering Gear
·Bow Thrusters: HRP 4008 TT, 2 x 350 kW
·Stern Thruster: HRP 4008 TT, 1 x 350 kW
External Fire Fighting
·System: Agni-1
·Pumps: 2 Sets x 1,500 m³/h
·Monitors: 120 m Throw Length
Rescue Class
Class: UKOOA ERRV Group C
Navigation Equipment
·Radar Plant: 2 Units
·AIS: 1 Unit
·Auto Pilot / Gyro Compass: 1 Unit
·GMDSS: 1 Unit
Complement
·Capacity: 28 Persons
LOA 59 m
Beam 15 m
Draft 5 m
Built in year 2025
Class : Indian Register of Shipping
Flag : India
Gross Tonnage of 1.900
Free Deck area about 330m²
Fire Fighting System installed
Deadweight : 2.500 metric tonnes
Total 28 berths
Speed : 12,5 knots
Engines : 2 x Yanmar / Yanmar Diesel Engine Co Ltd 6EY26, 3.680 kw, 750 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 MAN 300 kw, Bowthruster + No Sternthruster (2 Bow Tunnel thruster)
Capacities
Deck Cargo: 500 MT
Cement: 100.00 m³
Fuel Oil: 573.30 m³
Lubrication Oil: 8.00 m³
Fresh Water: 673.50 m³
Ballast Water / Drill Water: 479.90 m³
Open Deck Area: 330 m²
Main Engine
·Type: YANMAR 6EY26
·MCR (Maximum Continuous Rating): 1,920 kW x 750.0 RPM
·NCR (Normal Continuous Rating): 1,632 kW x 710.5 RPM
Service Speed
·Speed: 12.5 knots
Bulk Handling System
·Air Compressor: 6 m³/h
·Cement Tanks: 4 x 25 m³
Water Ballast / Drill Water System
·System: Two (2) Main Lines
·Pump: 2 Sets x 200 m³/h
Power Supply
·Main Diesel Generators: 2 Sets x 280 kW
·Emergency Generator: 1 Set x 90 kW
Propulsion & Steering
·Propulsion System: Berg CPP System
·Steering: 2 x Timon Flap Rudder with Electro Hydraulic Rotary Vane Steering Gear
·Bow Thrusters: HRP 4008 TT, 2 x 350 kW
·Stern Thruster: HRP 4008 TT, 1 x 350 kW
External Fire Fighting
·System: Agni-1
·Pumps: 2 Sets x 1,500 m³/h
·Monitors: 120 m Throw Length
Rescue Class
Class: UKOOA ERRV Group C
Navigation Equipment
·Radar Plant: 2 Units
·AIS: 1 Unit
·Auto Pilot / Gyro Compass: 1 Unit
·GMDSS: 1 Unit
Complement
·Capacity: 28 Persons
LOA 59 m
Beam 15 m
Draft 5 m
Built in year 2025
Class : Indian Register of Shipping
Flag : India
Gross Tonnage of 1.900
Free Deck area about 330m²
Fire Fighting System installed
Deadweight : 2.500 metric tonnes
Total 28 berths
Speed : 12,5 knots
Engines : 2 x Yanmar / Yanmar Diesel Engine Co Ltd 6EY26, 3.680 kw, 750 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)
Auxiliaries Engines : 2 MAN 300 kw, Bowthruster + No Sternthruster (2 Bow Tunnel thruster)
