117m / Trailing Suction Hopper Dredger for Sale /

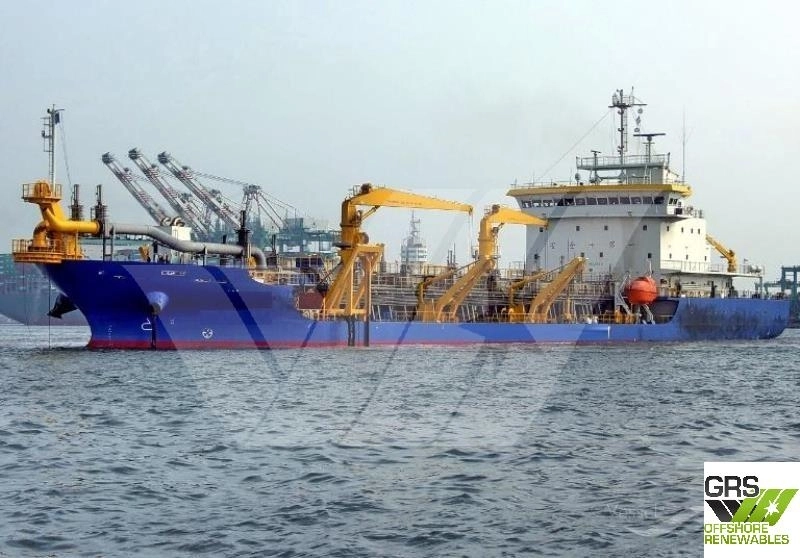

117m / Trailing Suction Hopper Dredger for Sale / #1076627 Trailing Suction Hopper Dredger

Blt 17 Sep., 2012

Shipyard: Ching Fu Shipyard, Taiwan

Clas DNV 1A1 DREDGER TMON

Maximum Ship Speed 13.0 kts

Dredging Speed 1 ~ 3 kts

Gross Tonnage (GRT) 7,636

Net Tonnage (NT) 2,290

Deadweight Tonnage (DWT) 10,650

Endurance 25days?

Overall Length LOA 116.95m

Width 22.00m

Molded Depth 8.90m

Maximum Summer Draft 6.8m

Maximum Dredging Draft 7.8m

Main Engine STX-MAN

Diesel Engine 3500KW (750rpm) *2 units

Propulsion Equipment CPP (4-blade nozzle) *2

Generator 425 KW*3 units

Bow thruster (375kw)

Windlass Hydraulic Ele. Motor Type*2 units (9m/sec)

Crane 12T*15m*1 unit (bow), 10T*18m *1 unit (stern)

0.9T*6 m*1 unit (left), 0.9T*8 m*1 unit (right)

Dredging pump*2 units (1,685kw)

Sand pump flow rate: 12,000 m^3/hr

Sand pump diameter: 900 mm

Full load time: 1 hr

Anchorage Motor Fuel Consumption 300 LT/day

Lubricating Oil Consumption 10 LT/day

Fuel Tank Capacity 700 m3

Pressure Water Tank Capacity 657.3 m3

Freshwater Tank Capacity 330 m3

Mud Tank Capacity 7,047 m3

Maximum Crew Quota 27 people

Minimum Safety Quota 14 people

Sand Pumping Equipment (Mud Tanks * 14 sets)

Bottom discharge: Bottom

(No.1&7Compartment, two-stage opening: 100 and

1,030mm. Other compartments fully open mode: 1,030mm)

Bow Blow: Bow

Blow—2,000m (no shore booster pump)

Bow Jet: Bow rainbow—50m

High-pressure flushing equipment 1,257 kw*2 (3,240 m3/hr)

Water Jet Pressure 20 kg/cm2

Dredging System Double winches, double pumps, double dredgers

Dredger Length 34m (effective dredging depth 27m)

Production Capacity Meter 2 (mud pump outlet)

Note Operates in A2 waters

Operating Limitation:

1. Operating water depth of 9-27m, wind speed below13.8m/sec.,

sea wave level below 5, and swell wave level below 3, suitable for

operations with wave height below 2m, unable to operate during

typhoons or severe weather conditions with strong winds and waves.

2. Suitable for geological operations such as sand, clay, or silt.

Not suitable for operations in areas with hardness

greater than 70, such as crushed stone, pebbles,

or rocks (which may cause damage to the dredger).

3. The operating area should be 50m away from the

channel or offshore.

4. Fuel, freshwater, and provisions need to be replenished ashore.

LOA 116,95 m

Beam 22 m

Draft 6,8 m



Built in year 2012

Class : China Corporation Register

Flag : Panama

Gross Tonnage of 7.636 and Nett Tonnage of 2.290



Deadweight : 10.650 metric tonnes



Speed : 13 knots

Engines : 2 x MAN / STX Engine Co Ltd 7L32/40, 7.000 kw, 750 rpm, Propellers 1 Controllable Pitch (Port Side) + 1 Controllable Pitch (Starboard)

Auxiliaries Engines : 3 Caterpillar 530 kw, Bowthruster + No Sternthruster (1 Bow Tunnel thruster 460kw)



1 Deck
